Schneider 140AVI03000 Brand new and sealed

Ask Lasest Price
Brand Name :	Schneider
Model Number :	140AVI03000
Certification :	CE
Price :	1-500USD
Payment Terms :	T/T, Western Union
Supply Ability :	30 PCS/ PER Month
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

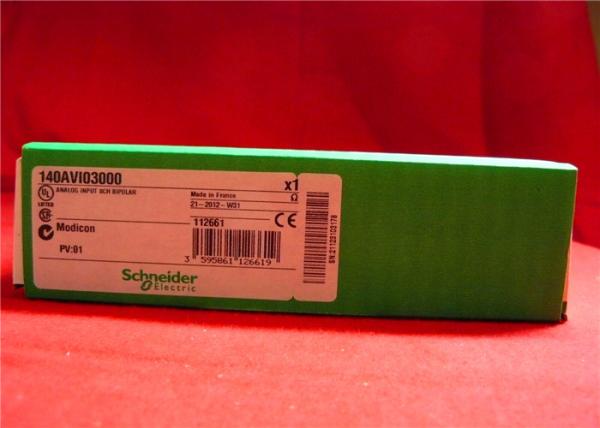

Schneider 140AVI03000 Brand new and sealed

Schneider 140AVI03000 Brand new and sealed

Quick Details:

SCHNEIDER ELECTRIC
MODICON
140-AVI-030-00
140AVI03000
ANALOG
INPUT 8CH
BIPOLAR
One Year Warranty

SPECIFICATION

Manufacturer	Schneider Electric
Series	Modicon Quantum
Module format	Standard
Type of filter	Single pole low pass - 3 dB at 847 Hz +/- 20 %
Analogue input number	8
Input type	Differential
Addressing requirement	9 input words
Analogue input type	Unipolar voltage 0...5 V
	Unipolar voltage 0...10 V
	Unipolar current 0...20 mA
	Bipolar voltage +/- 5 V
	Bipolar voltage +/- 10 V
	Bipolar current 20 mA
Analogue input resolution	16 bits 20 mA
	16 bits 0...5 V

	16 bits 0...20 mA
	16 bits 0...10 V
	16 bits +/- 5 V
	16 bits +/- 10 V
Linear measuring range	(Input range) x 1.024 mA
	(Input range) x 1.024 V
Absolute maximum input	50 V DC
	25 mA
Input impedance	250 MOhm +/- 0.03 %
	> 20 Ohm voltage
Absolute accuracy error	+/- 0.05 % of full scale maximum
	+/- 0.03 %
Linearity error	+/- 0.008 %
Accuracy drift according to temperature	<= 0.004 % of full scale /Â°C
	+/- 0.0015 % of full scale/Â°C

Common mode rejection	> -80 dB 60 Hz
Isolation between channels and bus	750 V DC
	500 Vrms AC for 60 s
Isolation between channels	135 Vrms AC
	200 V DC
Update time	10 ms
Fault type	Overtacking scale 1...5 V
	Broken wire 4...20 mA
Marking	CE
Local signalling	8 LEDs red channel fault
	8 LEDs green channel is turned on
	1 LED red external fault
	1 LED green bus communication is present (Active)
Bus current requirement	280 mA
Power dissipation in W	2.2 W
