Schneider Modicon TSX Quantum 24-230 VAC Output Module 140DAO84000

Ask Lasest Price
Brand Name :	Schneider
Model Number :	140DAO84000
Certification :	CE
Price :	1-500USD
Payment Terms :	T/T, Western Union
Supply Ability :	30 PCS/ PER Month
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

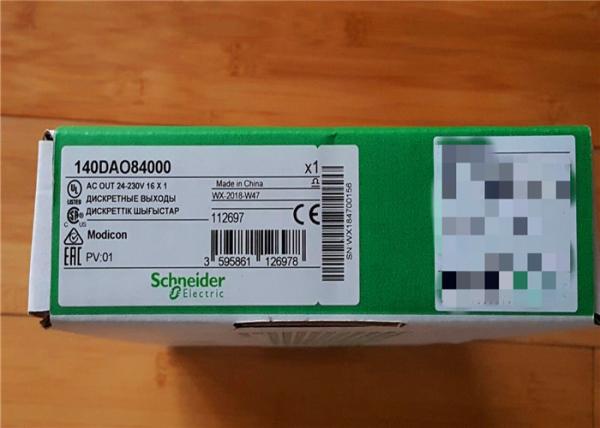

Schneider Modicon TSX Quantum 24-230 VAC Output Module 140DAO84000

Schneider Modicon TSX Quantum 24-230 VAC Output Module 140DAO84000

Quick Details:

SCHNEIDER ELECTRIC
MODICON
140DAO84000
OUTPUT MODULE
DISCRETE
MODICON QUANTUM
16OUTPUT 20-253VAC
OUTPUT 24-230VAC
16X1
One Year Warranty

SPECIFICATION

Manufacturer	Schneider Electric
Series	Modicon Quantum
Product weight	0.45 kg
Range of product	Modicon Quantum automation platform
Product or component type	AC discrete output modules
Discrete output number	16
Discrete output type	Isolated
Group of channels	16 groups of 1 channel
Supply frequency	47...63 Hz
Voltage drop	1.5 V
Discrete output voltage	20...253 V AC
Addressing requirement	1 output word
Absolute maximum output	300 Vrms for 10 s AC

	400 Vrms 1 cycle AC
Maximum load current	4 A rms sum of four points, continuous
	1 mA rms 24 Vrms off state leakage per output
	1 mA rms 48 Vrms off state leakage per output
	16 A rms per module
	2 mA rms 115 Vrms off state leakage per output
	2.5 mA rms 230 Vrms off state leakage per output
	3 A rms 200...230 V per output
	4 A rms 24...115 V per output
Surge current	<= 10 A during 3 cycles per point
	<= 20 A during 2 cycles per point
	<= 30 A during 1 cycle per point
DV/Dt	400 V/ms

Response time	<= 0.5 ms at state 0 to state 1
	<= 0.5 ms at state 1 to state 0
Protection type	Internal by RC filter
Power dissipation	1.85 + (1.1 V x total module load current)
Associated fuse rating	5 A
Marking	CE
Local signalling	1 LED green bus communication is present (Active)
	1 LED red external fault detected (F)
	16 LEDs green input status
Bus current requirement	350 mA
Module format	Standard
