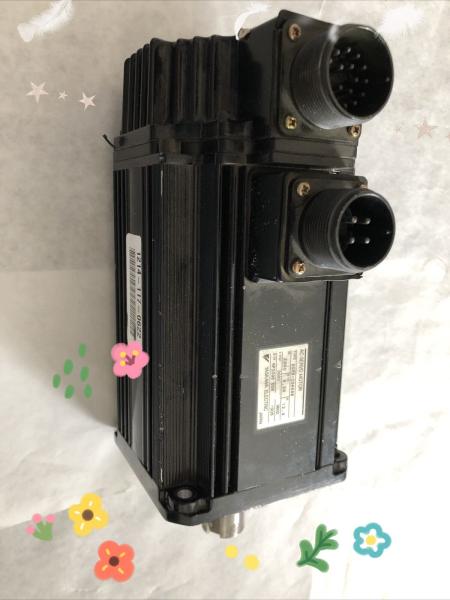

Descriptions Of SGMS-20A6AB

Yaskawa SGMPH-15AAA2B Product information and technical parameters:
Brand: Yaskawa
Name: Servo motor
Model: SGMPH-15AAA2B
Servo motor type SGMPH (speed: 3000r/min).
Power: 1.5kw.
Power supply voltage: three phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with DC90V brake.

Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.

Servo motor type SGMAH (speed: 3000r/min).
Power: 0.75kw.

Power supply voltage: three phase AC200V.
Serial encoder: 16 bit absolute value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with DC24V brake.
Improve mechanical properties.
In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,

Positioning time is shortened to the original product of 1/3, to achieve a good response Yaskawa SGMPH-15AAA2B

The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the Yaskawa SGMPH-15AAA2B.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenanceSecurity module.
Maximum applicable motor capacity: 7.5kw.
Power supply voltage: three phase AC200V Yaskawa SGMPH-15AAA2B.
Interface: MECHATROLINK- III communication command type (rotary servo motor).

Design sequence: A.
Hardware specifications: shelf installation type + paint.
Matching (software): no matching (standard).
Matching (parameters): no matching (standard).
Optional module: security module.
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.

Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first).
Can easily achieve the best security design of mechannical systems SGMPH-15AAA2B.
Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.
In addition, the monitoring time and other itemms can be changed through the parameter SGMPH-15AAA2B.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized.
